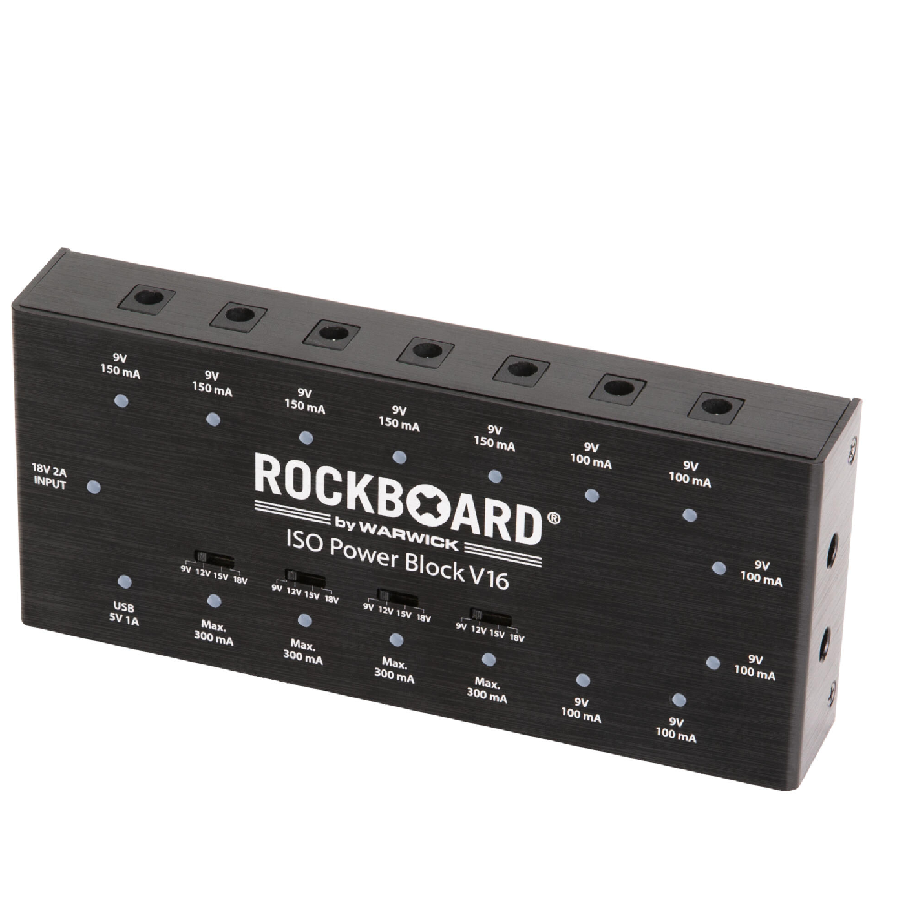

Rockboard Iso Block V16 - Multi Power Supply
This power supply is exactly what you need if you are looking for a good power supply that is not too expensive. The Rockboard Iso Block V16 is one of the best power supplies around this price with its robust housing and charging power.
Features of the Rockboard Iso Block V16
16 Galvanically split, highly filtered power connections
Power supply for up to 15 effect pedals without ambient noise and for charging USB devices
Advanced filter technology effectively prevents high-frequency background noise
External transformer prevents Audio Frequency (AF) interference
Maximum total output power: 27.95 W (3,550 mA)
6x 9V DC power connection, each with 100 mA loadable, 2.1 x 5.5 mm hollow plug with polarity (-) inside
5x 9V DC power connection, each with 150 mA loadable, 2.1 x 5.5 mm hollow plug with polarity (-) inside
4x switchable power connection (9V DC 300 mA / 12V DC 200 mA / 15V DC 180 mA / 18V DC 150 mA), 2.1 x 5.5 mm hollow plug with polarity (-) inside
1x USB 5V, 1A loadable, type A
Individual status LEDs and short-circuit protection for each power connection to the Rockboard Iso Block V16
Input voltage 18V DC
Technical specifications
